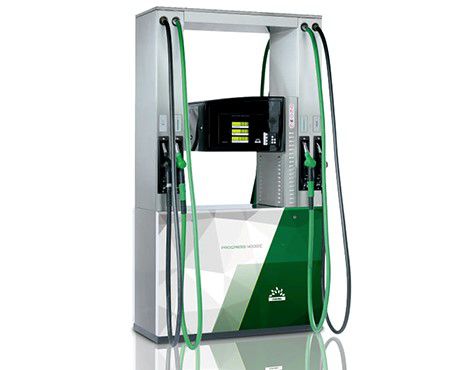

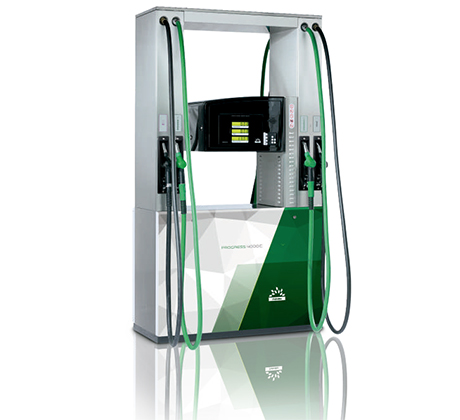

Petrotec P4000

This is the H-style multiproduct model from the Progress family, with two hose options (hanging hose and hose retraction), up to four fuel grids and eight hoses, and a dispensing capacity of up to 130L/min. This model also allows the integration of multimedia and payment systems. This is the perfect choice for those who are looking for a more compact multiproduct dispenser with a great performance, easy to fit any forecourt.

Standart Features

- Construction Frame: Galvanised Steel; Double Coated Painting

- Housing: Stainless Steel

- Panels: Aluminium; Double Coated Painting Admission

- Suction: High Performance Compact Gear Pump RTF

- Pressure: Submersible Pump

- Meter: Positive Displacement Meter PTF, with Pulse Generator and Integrated Electronic Calibration

- Filters: Reusable Stainless Steel, 100 μm mesh and 30μ for diesel or 10μ for gasoline

- Motor: Ex-Proof, Single/ Three-Phase, 50/60 Hz w/ Internal Thermal Protection

- Calculator: eMC² Electronic Modular Calculator, 2nd Generation

- Hose: Ø16, 19, 21, 25 mm (EN1360/EN13483) (VR2 Approved)

- Nozzle: Automatic ZVA2

- Fuel Types: Petrol | Diesel | Biodiesel | Ethanol (E85) | AdBlue wo/heating (1)

- Flow Rates: 10, 40, 80, 130 L/min | Up to 4 Products/8 Hoses

- Certificates: ATEX; MID

Options

* Speed Selector (40/80 L/min)

* Vapour Recovery w/Monitoring

* Breakaway Couplings

* Voice Module

* Automatic Temperature Compensation

* Custom Nozzles and Sleeves

* Electro-mechanical Totalizers

* Single/ Three-Phase Motor

* Flexible Riser Connection

* TAG Reader

* OPT*

* Circuit Breaker

* Multimedia

* Vapour Recovery Stage II

* Satellite Ready (1 per side)

* Lifting Solution (for easier handling)

* Hose Retraction System

Note: * Integration with wide range of terminals

Communication

1) Petrotec

2) IFSF IP

3) HDX 2WI (Gilbarco)

4) EPS5

5) IFSF Lon v1.xx (Converter)

6) DART

7) Pulse Interface

8) IFSF Lon v2.xx

9) Dunclare

10) ER3

11) HDX 485 (Gilbarco)

12) Pumalan
